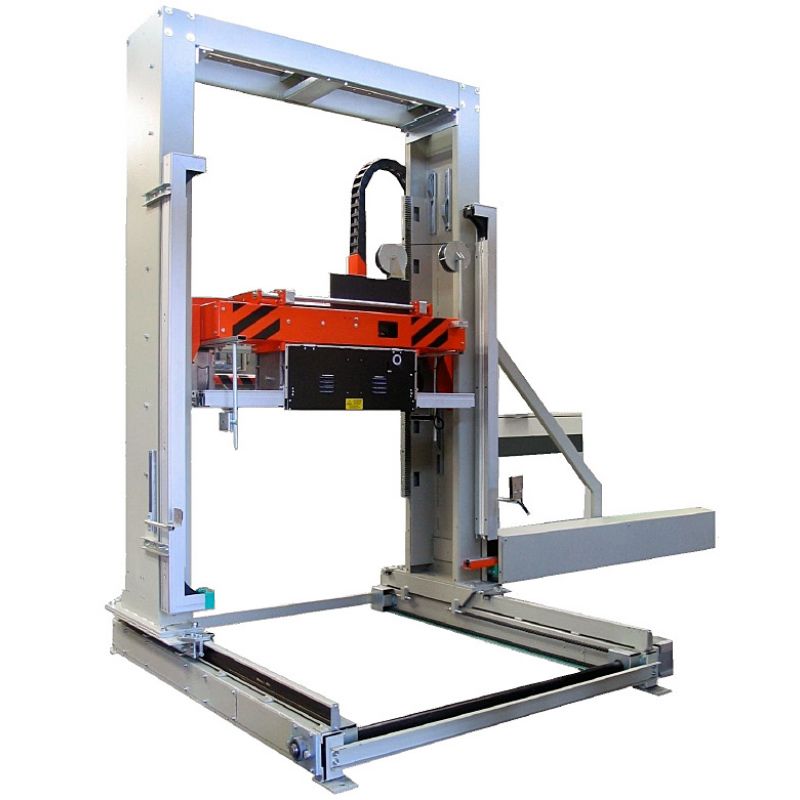

08RP - Vertical strapping machine

Strapping machines

08RP - Vertical strapping machine

The vertical strapping machine allows packing to be fully automatic. Can perform one or more banding operations of PET or PP tape (when ordered must be specified). Tapping through the pallet is carried out by a movable part of the guiding frame that runs across the pallet to the other side and closes the guiding tunnel.


Strapping head automatically sighting, tightening, welding and cutting the tape.


The strapping head is driven by a two-pole motor (0.75 kW), which operates always in one direction and supplying a constant power for operation under continuous cooling. Belt head gears are belt driven.


The machine can be delivered as fixed or movable.


The machine consists of the following main parts:

  • Strapping head
  • Telescopic guide tape with movable section
  • Head Motion Compensation
  • Tape stack
  • Strap head truck


Technical parameters

Type of tape PP nebo PET
Tape size 12x0,6 mm – 16x0,8 mm
Tape feed rate 5 m/s
Tape tightening 40-3000 N
Installed electrical power 2,2 kW
Air consumption 15l/tape by 6 Bars
Electrical connection 3x400 V, 50 Hz
